NodeJs GitHub Action Deployment on App Service Linux Using Publish Profile

3 minute read | By Kaliprasad Sahoo

Overview

This section provides information for creating, configuring, and deploying an NodeJs app on App Service Linux using GitHub action.

Prerequisites:

• An Azure account with an active subscription.

• A GitHub account.

Steps1:

Create a sample NodeJs web app(Linux with version 18 or above) in azure portal.

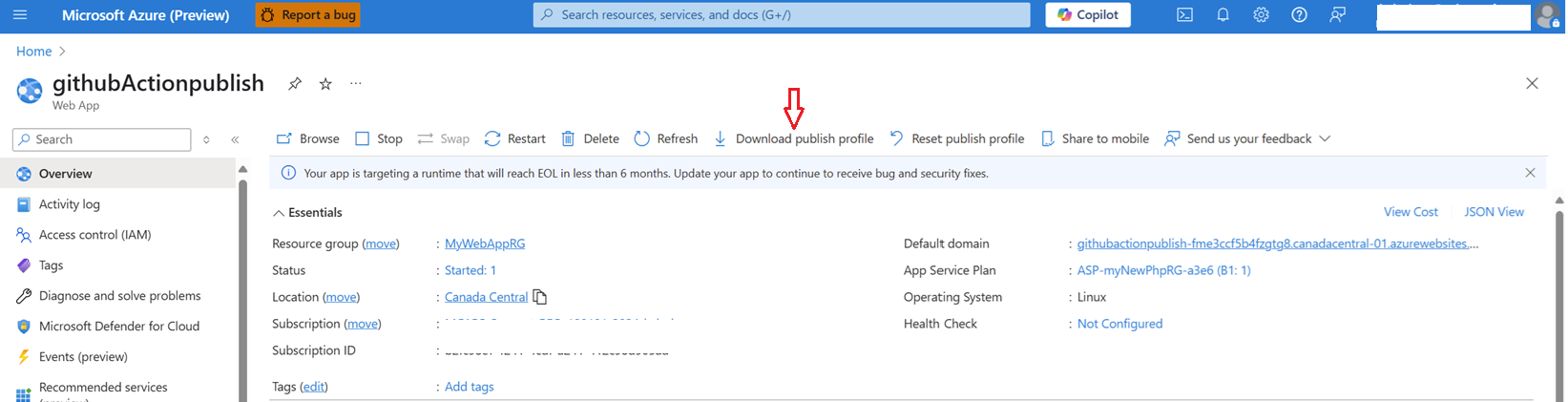

As we will be deploying using the publish profile, please download the publish profile by clicking on “Download publish profile” as shown below:

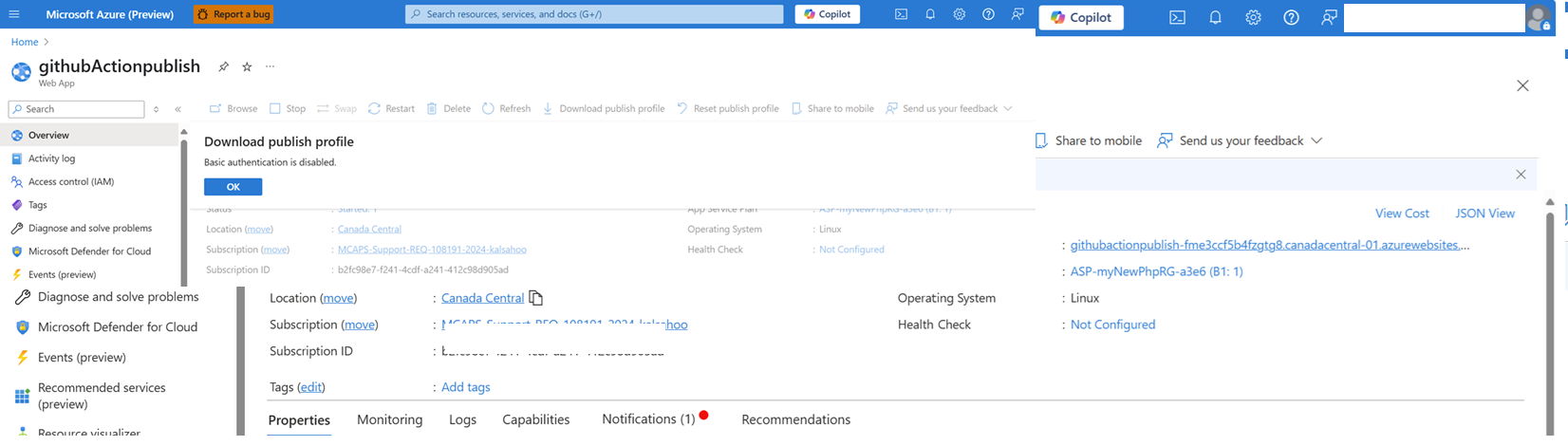

When you click on download publish profile, you may receive an alert stating that Basic authentication is disabled.

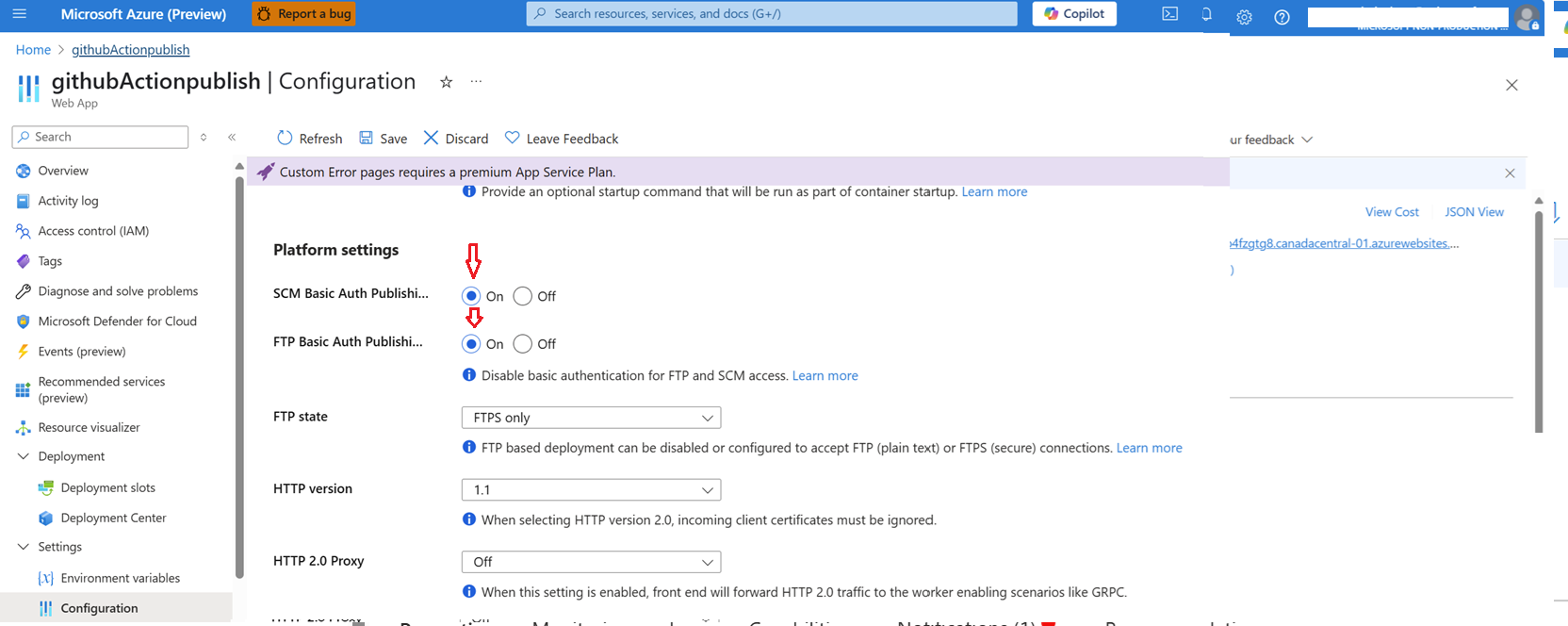

To resolve this, you need to enable basic authentication by going to the Settings»Configuration»General settings blade and following the steps provided:

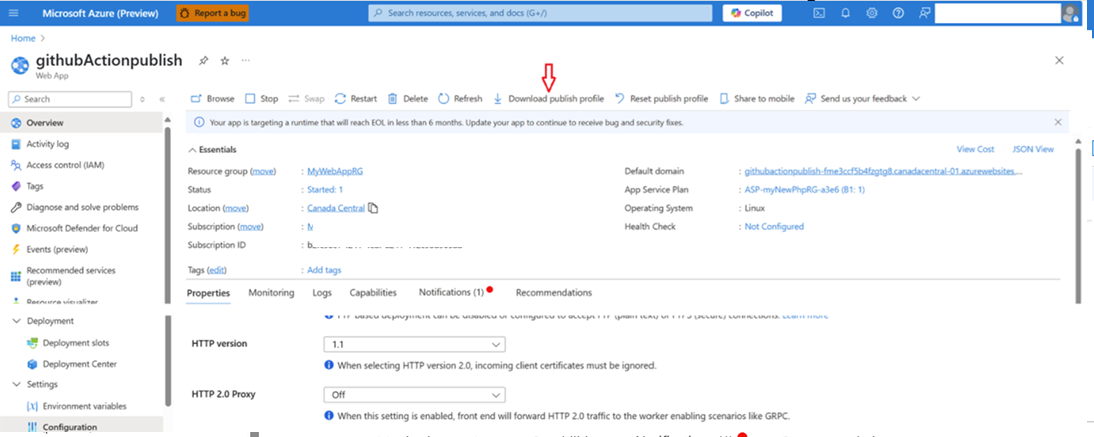

Click now on “Download publish profile” option to download the publish profile.

The downloaded “githubActionpublish.PublishSettings” file contains all the publish profile details like profileName, publishUrl,username, userPWD and publishMethod.

Step-2:

Create or fork a sample Node.js hello world repository in your GitHub using the link below

https://github.com/kpsahooMS/sampleNodeJs

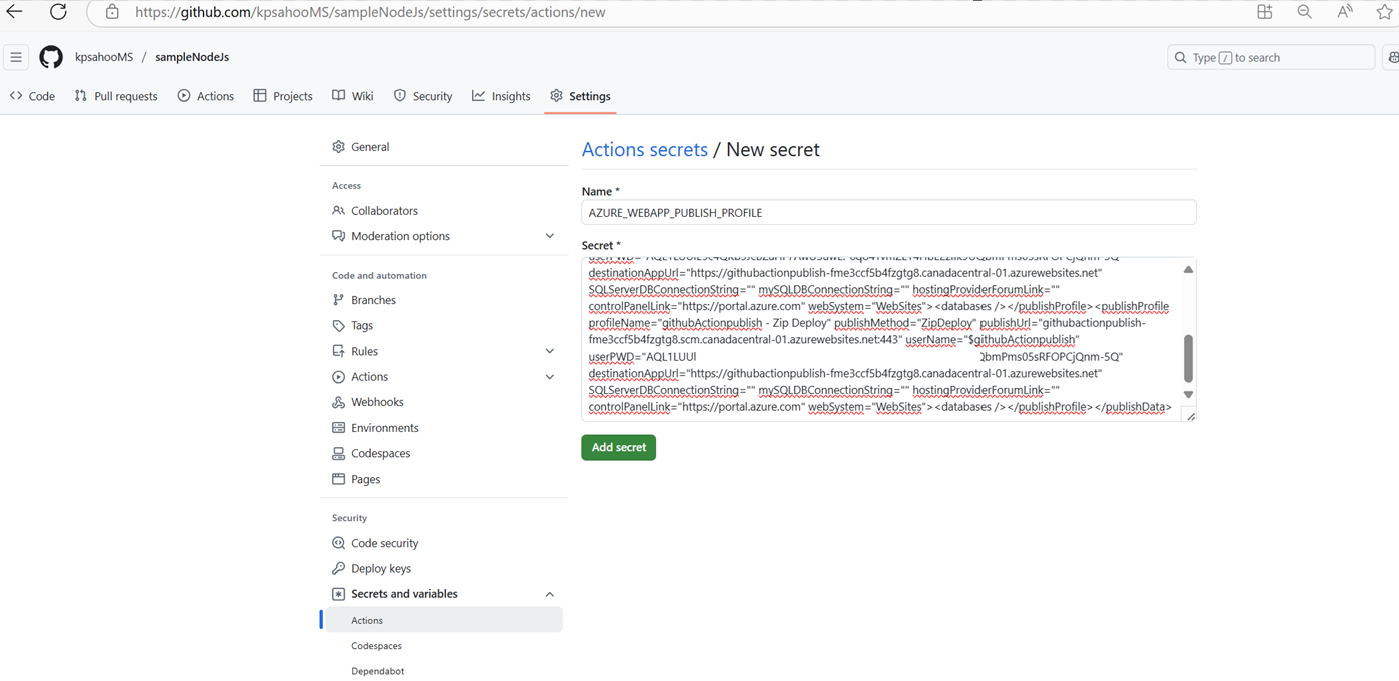

Now add the same publish profile content to your GitHub repository. Go to Settings > Security > Secrets and variables > Actions > New repository secret.

Create a new repository secret named AZURE_WEBAPP_PUBLISH_PROFILE and add all publish profile data to it.

Step-3:

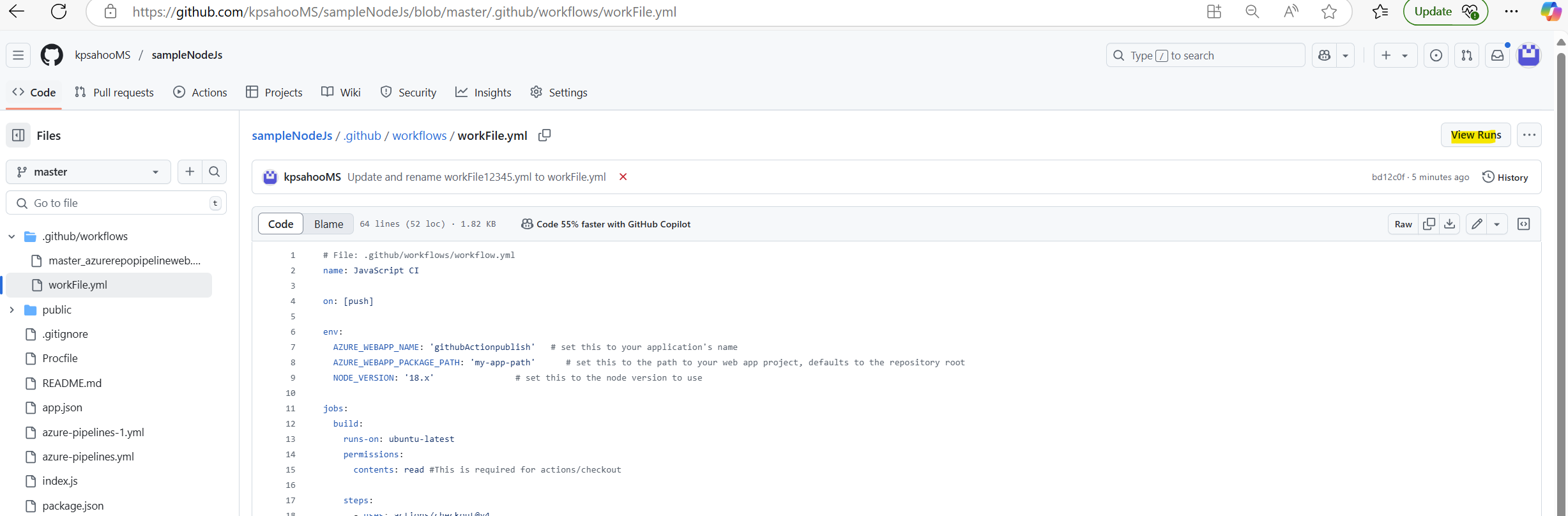

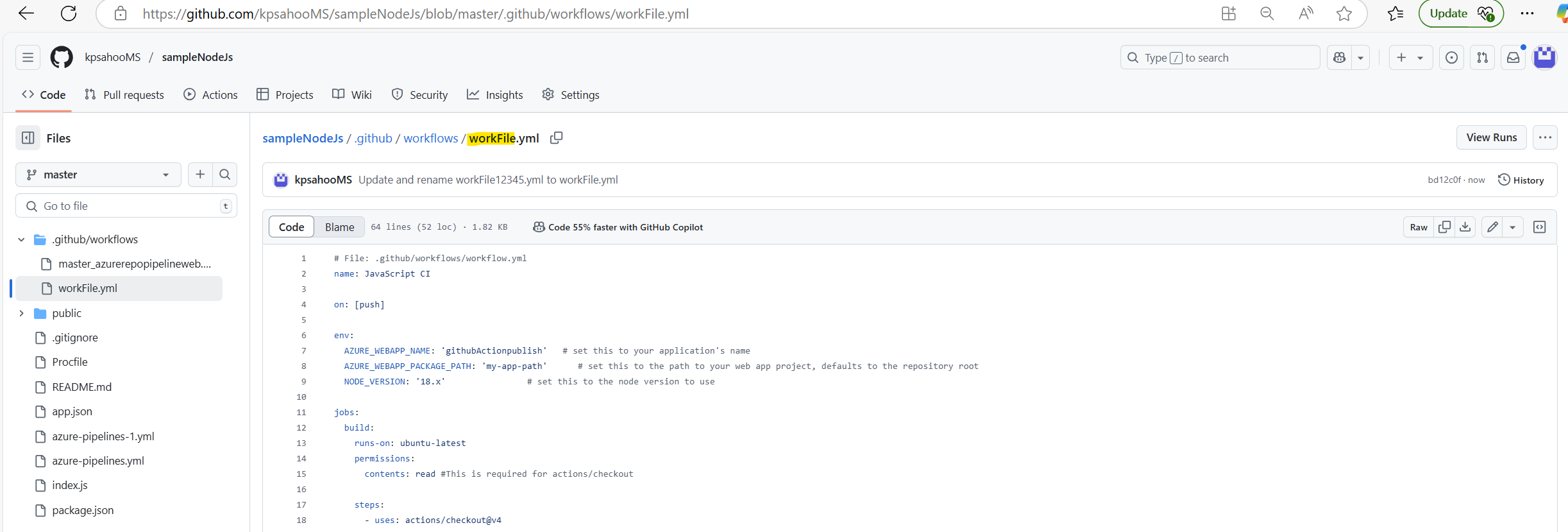

Please create a workflow file A YAML (.yml) file in the /.github/workflows/ path in your GitHub repository that includes all the steps such as environment setup, build, and deployment as outlined below:

Use the following sample WorkFlow.yml file for the setup.

WorkFlow.yml :

File: .github/workflows/workflow.yml

name: JavaScript CI

on: [push]

env: AZURE_WEBAPP_NAME: ‘githubActionpublish’ # set this to your application’s name

AZURE_WEBAPP_PACKAGE_PATH: ‘my-app-path’ # set this to the path to your web app project, defaults to the repository root

NODE_VERSION: ‘18.x’ # set this to the node version to use

jobs: build: runs-on: ubuntu-latest permissions: contents: read #This is required for actions/checkout

steps:
  - uses: actions/checkout@v4

  - name: Set up Node.js version
    uses: actions/setup-node@v3
    with:
      node-version: '20.x'

  - name: npm install, build, and test
    run: |
      npm install
      npm run build --if-present
      npm run test --if-present

  - name: Zip artifact for deployment
    run: zip release.zip ./* -r

  - name: Upload artifact for deployment job
    uses: actions/upload-artifact@v4
    with:
      name: node-app
      path: release.zip

deploy:
    runs-on: ubuntu-latest
    needs: build
    environment:
    name: 'Production'
  url: $

permissions:
  id-token: write #This is required for requesting the JWT
  contents: read #This is required for actions/checkout

steps:
  - name: Download artifact from build job
    uses: actions/download-artifact@v4
    with:
      name: node-app

  - name: Unzip artifact for deployment
    run: unzip release.zip

  - name: deploy to Azure
    uses: azure/webapps-deploy@v3
    with:
        app-name: $
        publish-profile: $
        package: '.'

Step-4

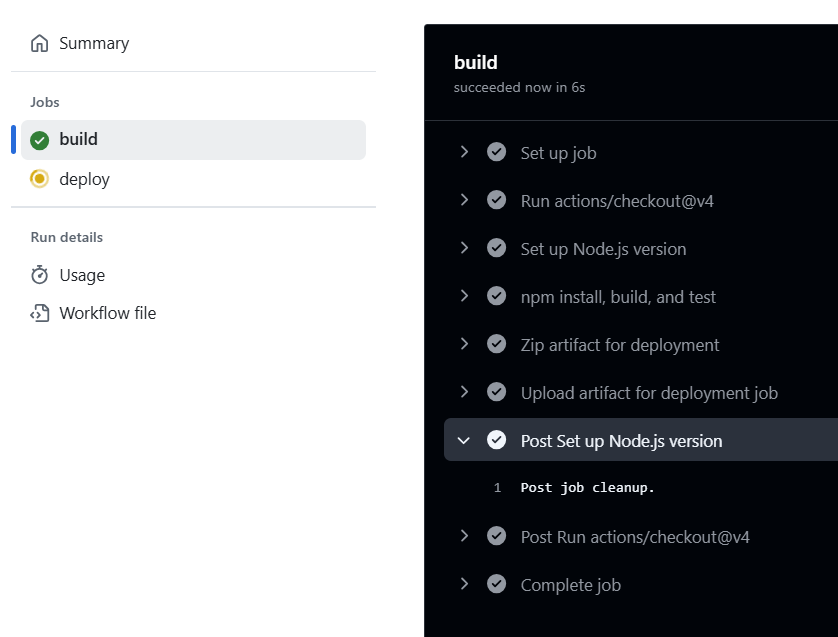

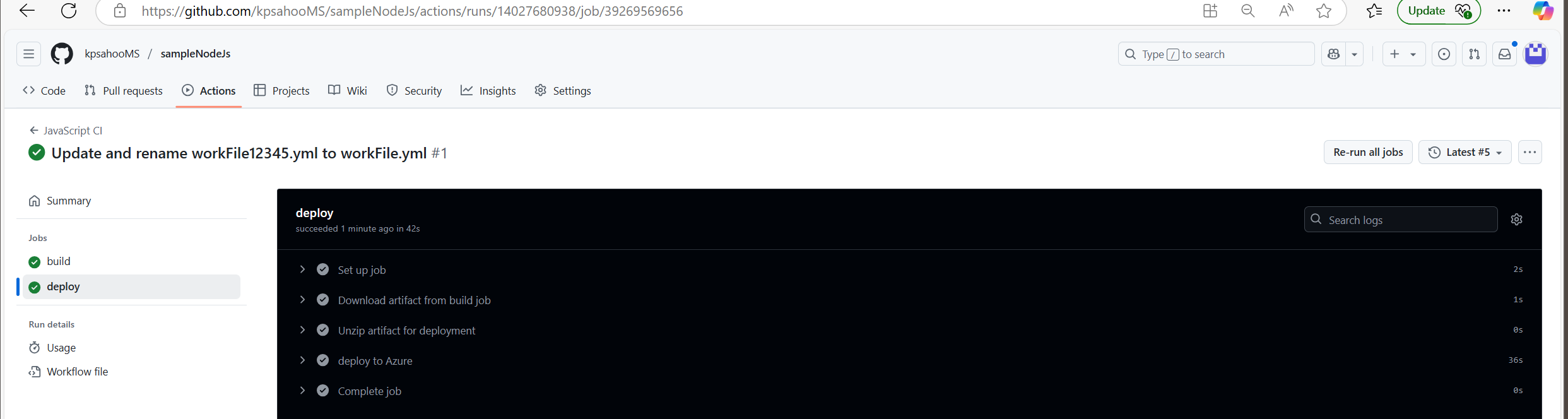

Now, run the workflow.yml file, and the following will be the successful logs:

Step-5:

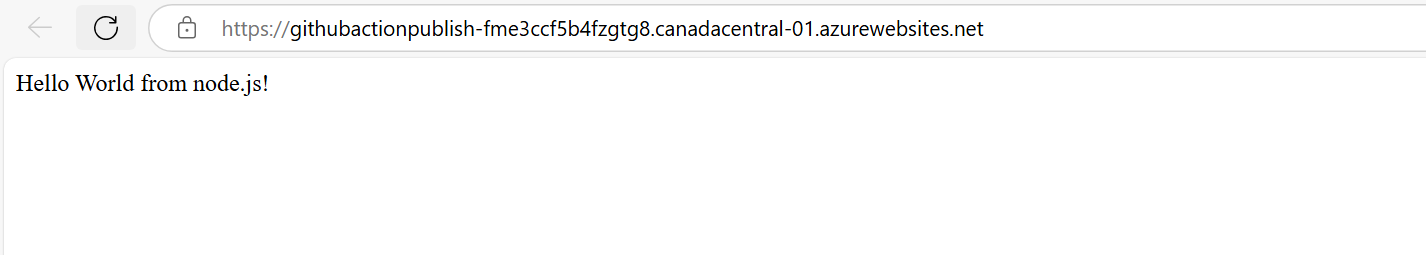

Now try accessing the application in the Azure portal as it has been successfully deployed to the web app:
